HLV YUDIN
Yudin is a versatile crane vessel ready to serve the offshore energy market.
A fully revolving crane, with capacity ranging from 660t to 2,500t, makes for a perfect vessel to undertake the installation of large and heavy offshore structures in the offshore energy market. A recently added feature is the newly added 1,200t main hoist giving the feasibility to perform installation of jacket structures up to a height of 70m
The vessel can accomplish a transit speed of up to 10 knots, making it possible to provide a cost-effective transport solution by taking on board offshore structures as an alternative to the feeder transportation concept. With a working draft of max. 8.9m
and transport draft of only 5.5m Yudin provides a solution to install offshore structures in shallow locations, while keeping position using the eight point mooring system.
Overall the Yudin is versatile in many ways making this vessel the perfect solution for your offshore installation works, all over the world.
General Information
|
Type |
Heavy lift |
|
Classification |
DNV 1A1 Crane vessel DK(+) E0 + LTE in 2014 |
|
Built |
Wartsila, Finland, 1985 |
|
Flag |
Cyprus |
Principal dimension
|
Length overall |
183.3m |
|
Length between perpendiculars |
173.2m |
|
Breadth |
36.0m |
|
Depth from deck |
13.0m |
|
Draft |
5.5 – 8.9m |
|
Gross tonnage |
24,822t |
|
Deck load |
<5,000t |
|
Deck space |
2,560m2 |
|
Free deck height |
20m (to boom in rest) |
Power and Propulsion
|
Main engines |
3x 4,095kW |
|
Generators |
3x 4,860kVA; 600V; 50Hz |
|
Main thrusters |
2x 2,800kW, fixed pitch, 360° |
|
Bow thrusters |
2x 1,335kW, tunnelled |
|
Emergency power |
529kW; 380V; 50Hz |
|
Maximum transit speed |
10 knots |

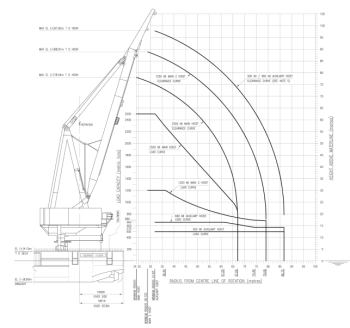

Cranes
|
Make |
Gusto |
|
Main hoist Maximum revolving capacity |
2,500t |
|
Maximum lift height above water level |
78.04m |
|
Auxiliary hoist Maximum capacity |
660t |
|
Maximum lift height above water level |
97.82m |
