SATURATION DIVING SYSTEM – FERNANDA 4
Fernanda 4 – 250msw 4 men containerized saturation diving system. Her main characteristics are:
- Dimensions 7m x 5.5m x 6.5m
- Operational depth up to of 250msw
- 4 man saturation chamber including 2 compartments DC & EC
- 2 man diving bell SDC “Drass NF 109” spherical type, Diameter 1800mm
- Saturation skid, handling system, ballast system, umbilicals etc
- All necessary ancillary equipment
SATURATION DIVING SYSTEM – CASTAGNA 1
The saturation diving system “Castagna 1” is a complete and containerized diving facility designed to be versatile and adaptable to any kind of vessel.
The system is designed for 9 saturation divers in operation (up to a maximum of 12 men), equipped with #3 men diving bell.
Main particulars:
- Owner: SSOS S.r.l.
- Builder SSOS S.r.l.
- Year of Build June 2016
- Temperature Range: -10°C/+45°C
- Maximum Working
- Pressure: 30,0 bar
- Maximum Working Depth 300 msw
- Maximum number of divers 12 Men
- No. of divers in the Bell: 3
- Classification society: RINA
- Classification standard: RINA
- Compliant with: IMCA D024
Main components:
- Main Module c/w Bell and LARS

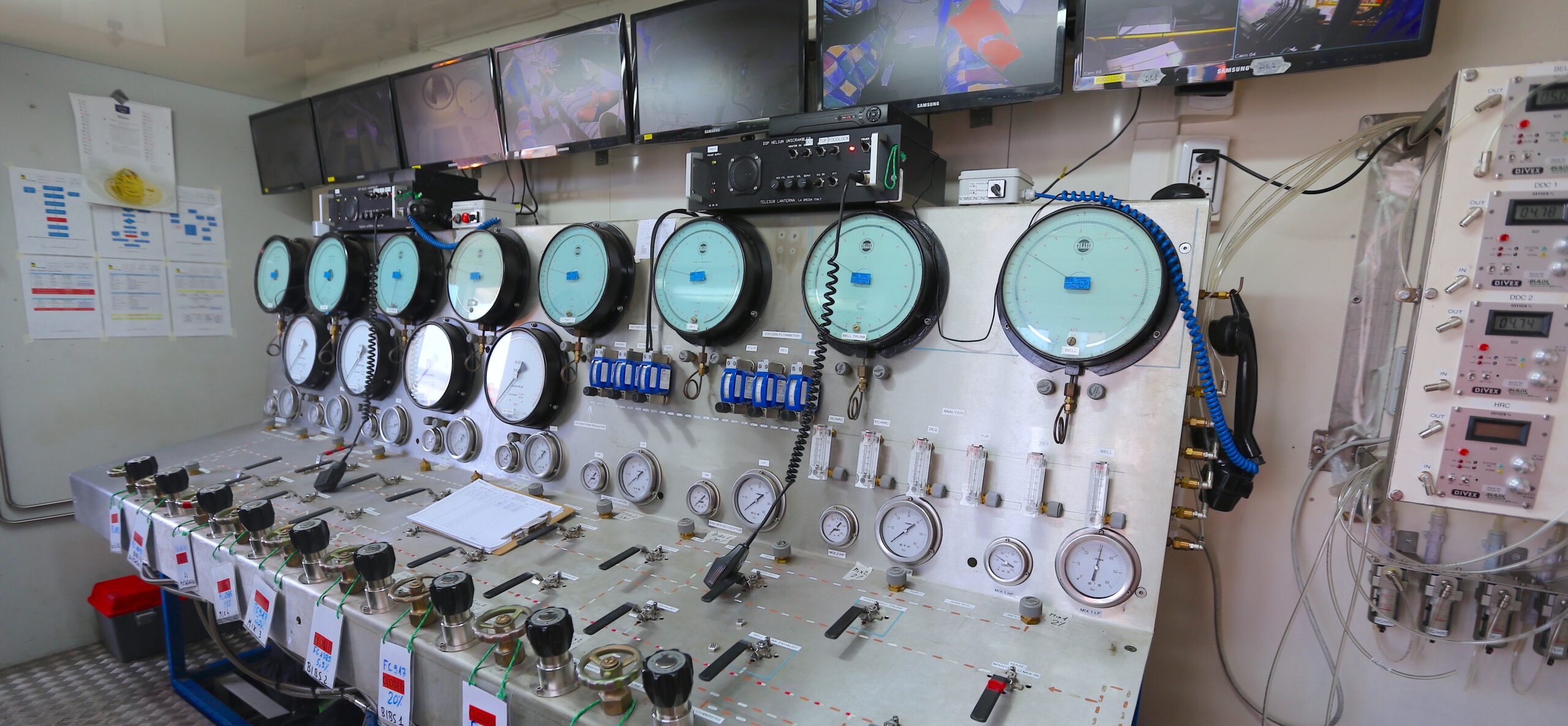

- Sat/Dive Control Unit
- Living Chamber & Transfer Lock (DDC-1)
- Living Chamber -2 (DDC-2)
- Hyperbaric Rescue Chamber (HRC) and Lanch System (DDC-3)
- HRC Fly Away Package Control Unit
- Main Umbilical Basket
- Machinery Container 1 (LIFE-1)
- Machinery Container 2 (LIFE-2)
- Workshop Container
- Hydraulic Power Pack
- Diver Hot-Water Unit (100% redundancy)
Supply requirements:
- Electric Power System: 440 v, 60 Hz
- Emergengy Generator: 200-220 kVA
- Compressed Air: 460 l/sec – 27,6 m3/min
- Seawater: 30 m3 /h @
- Fresh Water: 6 m3 /h @ 5bar
